Stainless steel grating clips
Despriction
The steel grating installation clip is made of high-quality steel plate through machine bending and punching. The installation clip is durable and easy to install. The galvanized installation clip is beautiful and firm, and it is not easy to rust, and it can fix the steel grid well. board.
Steel grating clips style:

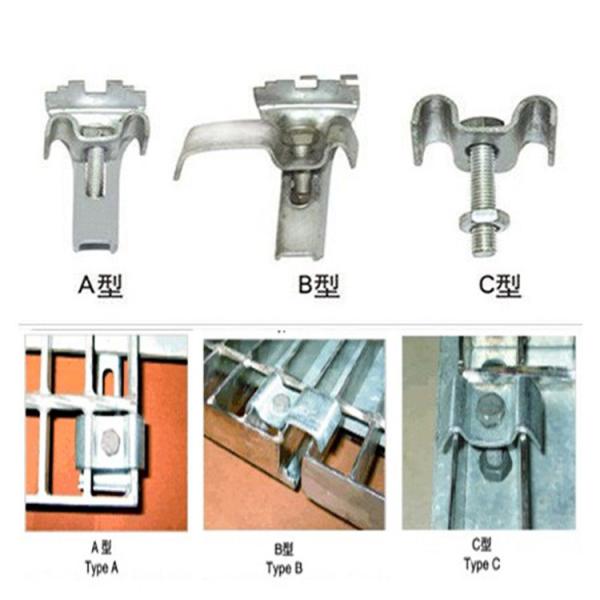

A, B and C style
Type A: It consists of an upper plate with double hooks, a lower plate with teeth and an M8 hexagon socket bolt.
Type B: It consists of an upper pressure plate with double hooks (one hook can enclose two adjacent steel gratings), a toothed lower pressure plate and a >M8 inner corner bolt.
Type C: It consists of an upper pressure plate with double hooks and an M8 hexagon head bolt that can be welded to the supporting member.
Installation method
A style clip is removable, easy to install, is the mostely used, including top clamp, bottom clapm and screw and nut.
B style clip also is removable, easy to install, is the mostely used, including top clamp, bottom clapm and screw and nut.
C style clip usually is welding installation, nut is usually welded on bottom steel beam, un-removable,including top clamp, bottom clapm and screw and nut, which is the most ecnomy style.
Kindly note
The steel grating that needs to be movable and detachable must be fixed with a special installation fixture for the steel grating to prevent any displacement of the member.
The mounting clip can be supplied by the manufacturer according to the requirement of the buyer. Except for the mounting clip made of stainless steel, the mounting clip made of carbon steel must be surface treated with hot-dip galvanizing. It is recommended that the bolts used for the mounting clip be treated with hot-dip galvanized surface. Less than 8mm, the number of mounting clips used for each steel grating shall not be less than 4. It is best to install a few more plates on the available supports for larger spans.
In order to find out any corrosion or any dangerous loosening or changes in the position of the clamping parts, the fastening status of the accessories should be checked at any time.
Suitable for below steel grating specification
| bearing bar | 25/3mm , 25mm/4mm , 25mm/5mm , 30/3mm , 30/5mm,32/3mm,32/5mm ,40/3mm............ 75/5mm,100/10mm |
| opening | 30mm x 32mm , 30mm x 60mm, 30mm x 100mm , 38mm x 100mm , 40mm x 100mm , 50mm x 50mm ,50mm x 100mm etc |
| surface treatment | black , hot dip galvanized |
| type | plain bar, serrated bar , I shape bar |

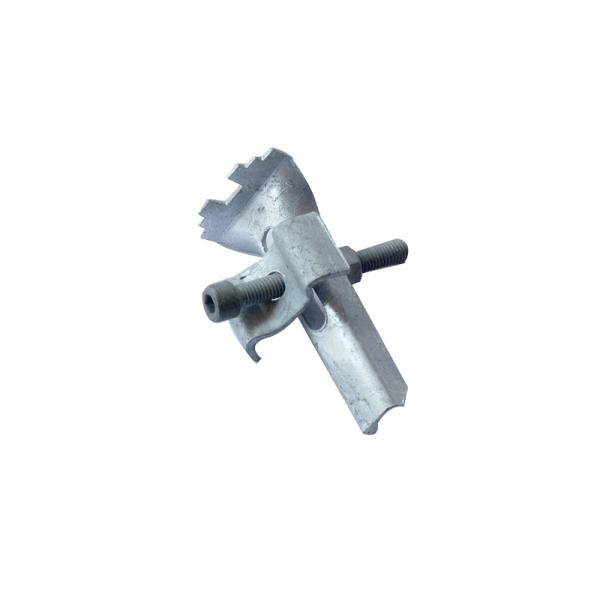

Steel Grating Clip Pictures
